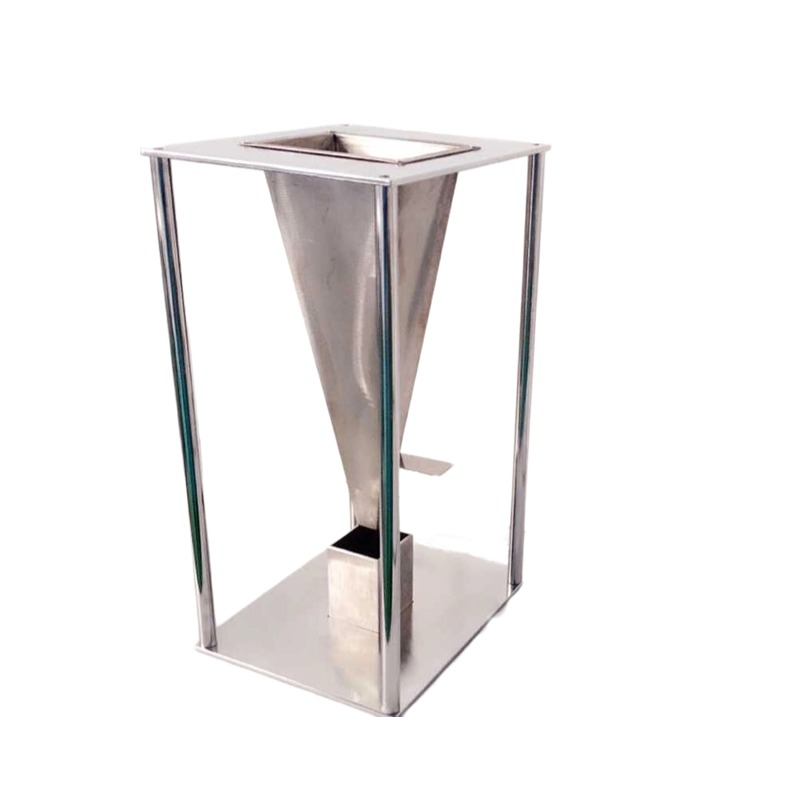

FT-103E固態速溶茶自由流動堆積密度測定儀

FT-103E solid-state instant tea free flow packing density tester

一.參照標準Standard：

：GB/T18798-2013本部分規定了測定固態速溶茶自由流動堆積密度和緊密堆積密度的儀器和設備、取樣、操作步驟和結果的計算。

According to the standard: GB/T18798-2013 the provisions of this part of the determination of solid instant tea flow freely bulkdensity and Compacted bulkdensity of the instruments and equipment, sampling, operating steps and the results of calculation.

本部分適用于固態速溶茶的自由流動堆積密度 固態速溶茶 第5部分: 自由流動和緊密堆積密度的測定； ISO6770：1982<<速溶茶 自由流動和緊密堆積密度的測定>>

This section applies to the free flow bulkdensity of solid instant tea and the fifth part of the solid instant tea: the measurement of free flow and Compacted bulk density;ISO6770: << instant tea the test of the free flow of instant tea and the Compactedly bulkdensity >>
二.定義definition：自由流動堆積密度 free-flow bulk densities :在規定條件下，自由地傾倒進一個容器后的質量與體積的比值，

free-flow bulk densities: the ratio of the mass to the volume of freely pour into a container under the specified conditions
三.原理Principle：自由流動堆積密度把樣品通過一個漏斗注入到一個已知體積和質量的容器中，稱量容器的內物的質量: the free flow of bulk density , pour  the samples through a special funnel into a specific  container which  volume and mass is known, measure the weight  of contents in the container.

四.參數資料：Technical Parameters
1. 漏斗上口徑：125mm*100mm；出口內徑：20mm*10mm

Funnel top diameter：125mm*100mm, outlet inner diameter：20mm*10mm
2.與樣品接觸部分采用食用級不銹鋼制成.

The contact part with sample is made of edible grade SS.

3. 刮鏟Spatula：約120mm*20mm

4.滑板Skate：30mm*100mm
5.接料容器Receiving container：200ml
6.接料容器尺寸Receiving container dimensions：74mm*55mm*50mm

7.選購天平Balance optional：0-2000g，精度accuracy 0.1g

8.附件：毛刷、鋼尺、說明書、保修卡、合格證

Accessories: brush, steel ruler, manual, warranty card, certificate

本標準規定的緊密堆積密度測定儀

The provisions of this standard the compacted bulk density meter

緊密堆積密度 compacted bulk densities:在受到規定條件下振動（一般100次）后的質量與體積的比值。

Compacted bulk densities: The ratio of mass to volume after Vibration under specified conditions (typically 100 times)

以下緊密堆積密度測定要求

The following instruments meet the compact bulk density measurement requirements

FT-100B振實密度儀；FZS4-4振實密度測定儀；FT-100A粉體密度測試儀

FT-100B  Practical tap density meter; FZS4-4 economic tap density meter; FT-100A microcomputer powder density tester
